Electric Outboard Motors –driving technology that is clean and state-of-the-art

for kayaks and very light boats

for tenders, dinghies and daysailers up to 1.5 tons

for motorboats and sailboats up to 10 tons

for commercial operators and green boaters



--A comprehensive portfolio of high-tech boat drives



Equivalent power Torqeedo solution Power supply
1 HP Ultralight 403 Integrated Li-ion battery
1.5 HP Travel 503 Integrated Li-ion battery
3 HP Travel 1003 Integrated Li-ion battery
5 HP Cruise 2.0 External Power 26-104 battery or AGM / lead-gel battery
8 HP Cruise 4.0 External Power 26-104 battery or AGM / lead-gel battery
40 HP Deep Blue 40 High-voltage battery, part of the Deep Blue system
80 HP Deep Blue 80 High-voltage battery, part of the Deep Blue system

Boat application Torqeedo solution Power supply
Kayak Ultralight 403 (1 HP) Integrated Li-ion battery
Beiboot, Dinghies, Daysailer bis 1,5 t Travel 503 (1,5 PS) integrierter Li-Ionen Akku
Travel 1003 (3 PS) integrierter Li-Ionen Akku
Motorboats , sailboats up to 4 tons Cruise 2.0 (5 HP) External Power 26-104 battery or AGM / lead-gel battery
Cruise 4.0 (8 HP) External Power 26-104 battery or AGM / lead-gel battery
Commercial operators, green boaters Deep Blue 40 (40 HP) High-voltage battery, part of the Deep Blue system
Deep Blue 80 (80 HP) High-voltage battery, part of the Deep Blue system


Zero Fuel, Zero Emission, Zero Maintemance

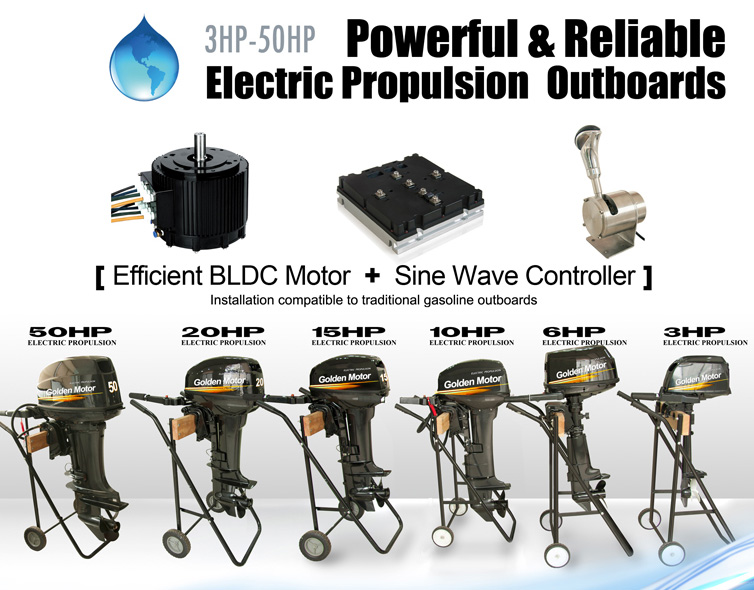

Electric Propulsion Outboards (3HP - 50 HP)



EPO-06HP/L
6hp (Long Shaft)
EPO-06HP/S
6hp (Short Shaft)
EPO-10HP/L
10hp (Long Shaft)
EPO-10HP/S
10hp (Short Shaft)
EPO-15HP/L
15hp (Long Shaft)
EPO-15HP/S
15hp (Short Shaft)
EPO-20HP/L
20hp (Long Shaft)
EPO-20HP/S
20hp (Short Shaft)

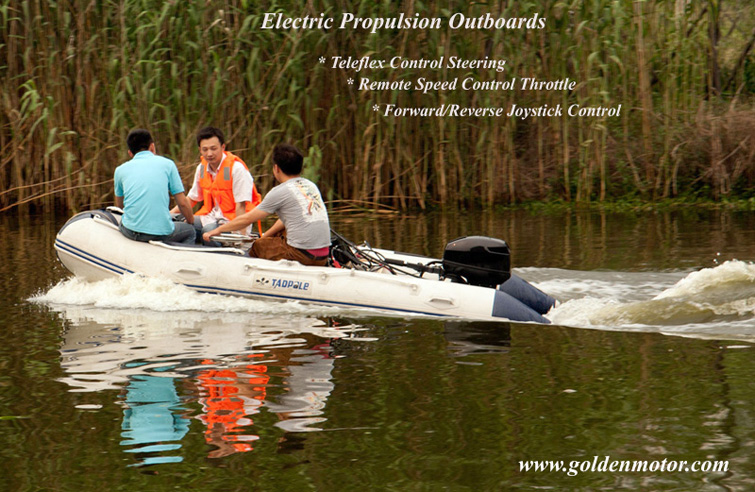

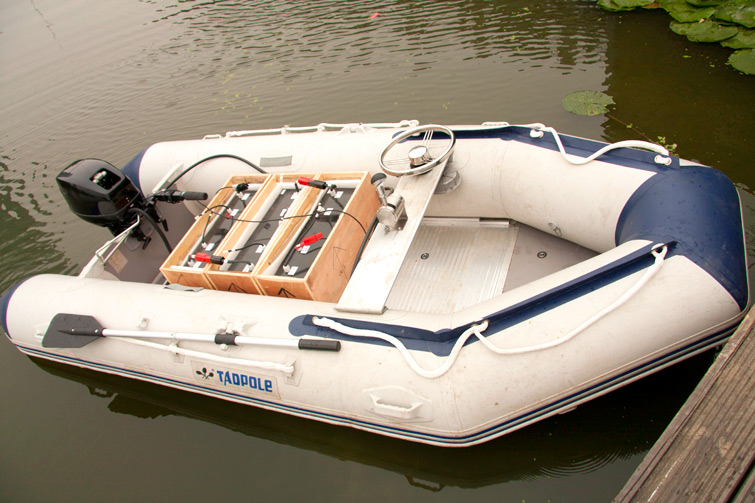

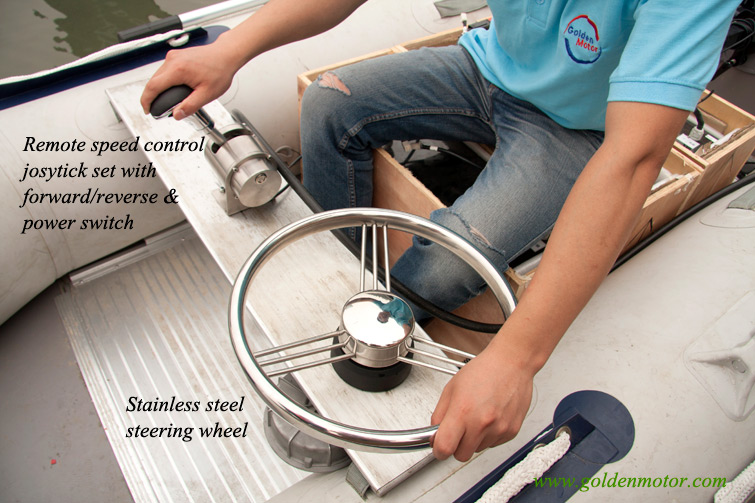

Teleflex Remote Control Setup is available as optional items upon request.
(teleflex cabling setup, steering wheel, speed control throttle with forward/reverse)

Buy Accessories for Teleflex/Remote Control (only available for 6hp and up):
Teleflex Cabling Set, Stainless Steering Wheel, Remote Control Joystick Set


TRC-010 Joystick Throttle
TRC-020 Stainless Steering Wheel
TRC-030 Teleflex Cabling Set (3.0m)
TRC-030 Teleflex Cabling Set (4.0m)
TRC-030 Teleflex Cabling Set (5.0m)
TRC-030 Teleflex Cabling Set (6.0m)
TRC-030 Teleflex Cabling Set (7.0m)
TRC-030 Teleflex Cabling Set (8.0m)
TRC-030 Teleflex Cabling Set (9.0m)


ELECTRIC PROPULSION OUTBOARD KIT

Configuration:

1. 5KW/10KW BLDC MOTOR Liquid Cooling System

487V/72V/96V/120V Available

2.BLDC CONTROLLER Liquid Cooling System

HPC300H/500H/700H 48V/72V/96V/120V Avaliable

3. Outboards witn options of short/long shaft

Efficiency over 90%

Long life over 20000h

4. HP options: 6HP, 10HP, 15HP, 20HP Available

5. Package Measurement: 1360cm x 72cm x 50cm

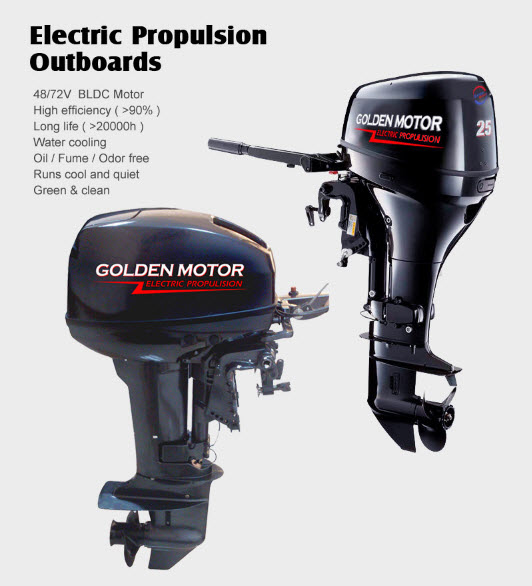

EPO SERIES

Available Models (Long Shaft / Short Shaft):

EPO-06H

EPO-10HP

EPO-15HP

EPO-10HP

EPO-20HP

Electric Outboard Motors
Designed to be quiet for environmentally sensitive waters, these 1HP horsepower Electric Outboard Motors provides plenty of power for trolling and primary propulsion. Conventional construction and design provides trusted reliability.
• Motor: Water-cooled brushless,High efficiency ,Water coooled at motor base
• Voltage: 48 Volts DC,or 60 VDC.
• Maximum Current: 50 Amps DC for 1HP Version,Max.current 100Amp for 2 HP version
• Designed for salt water or fresh water use

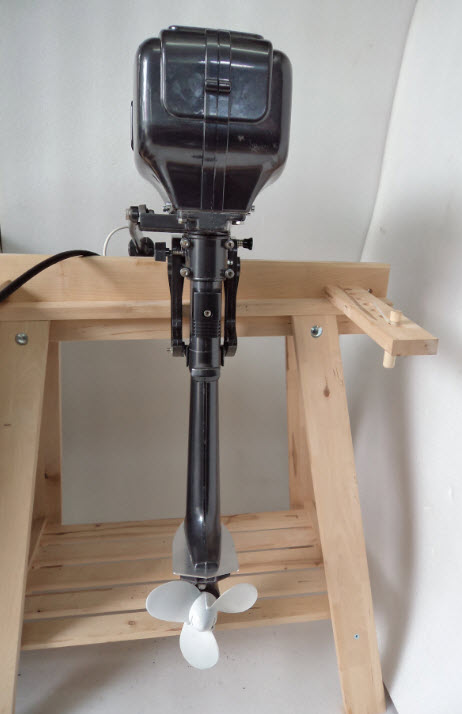

  Model:Dolphin 1 HP Tiller Short Shaft &Model Dolphin 2HP tiller short shaft


Shaft Length: 25.88 inches (660 mm)

DC Volt Meter: Included on Cover

Weight: 10.4 kg.

Blade Diameter = 190 MM (7.45inches)

Click here more details.


  Model:Dolphin 1 HP Tiller Short Shaft &Model Dolphin 2HP tiller short shaft


Electric Out Board  wiht propeller diameter = about = 190 mm.
Brusshless Motor 1HP 750W  48V
wiht Controller  2000w   or 2500 w
Twist Throttle 48v wiht LED battery level indicator ,, Reverse switch , brake switch
For larger boat and carry  2-4 people

Click here more details.


.. .. . . . . . . . . ..

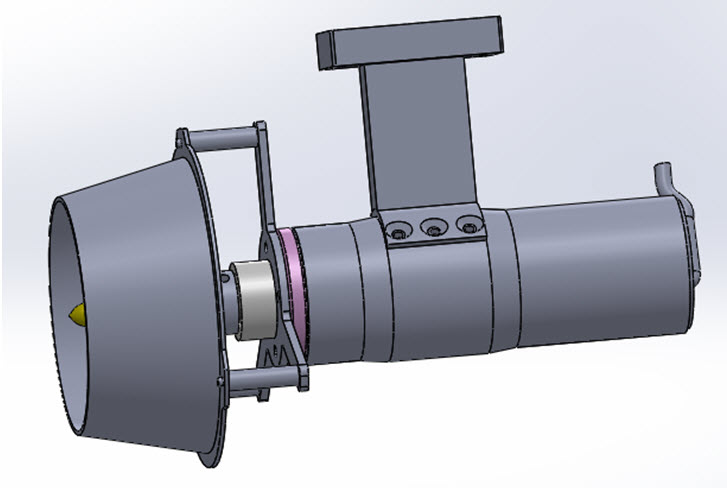

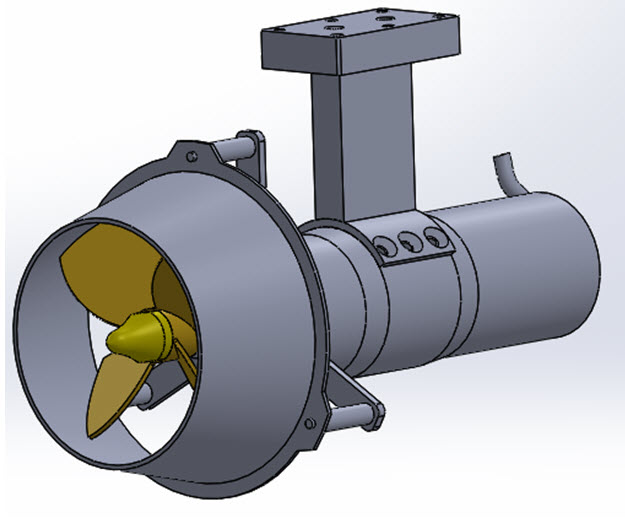

Thruster high force   /Brushless  type (sensor feedback)  ,  high precision  in controlling   both  Torque mode and  Velocity mode

Model : V15Q3
